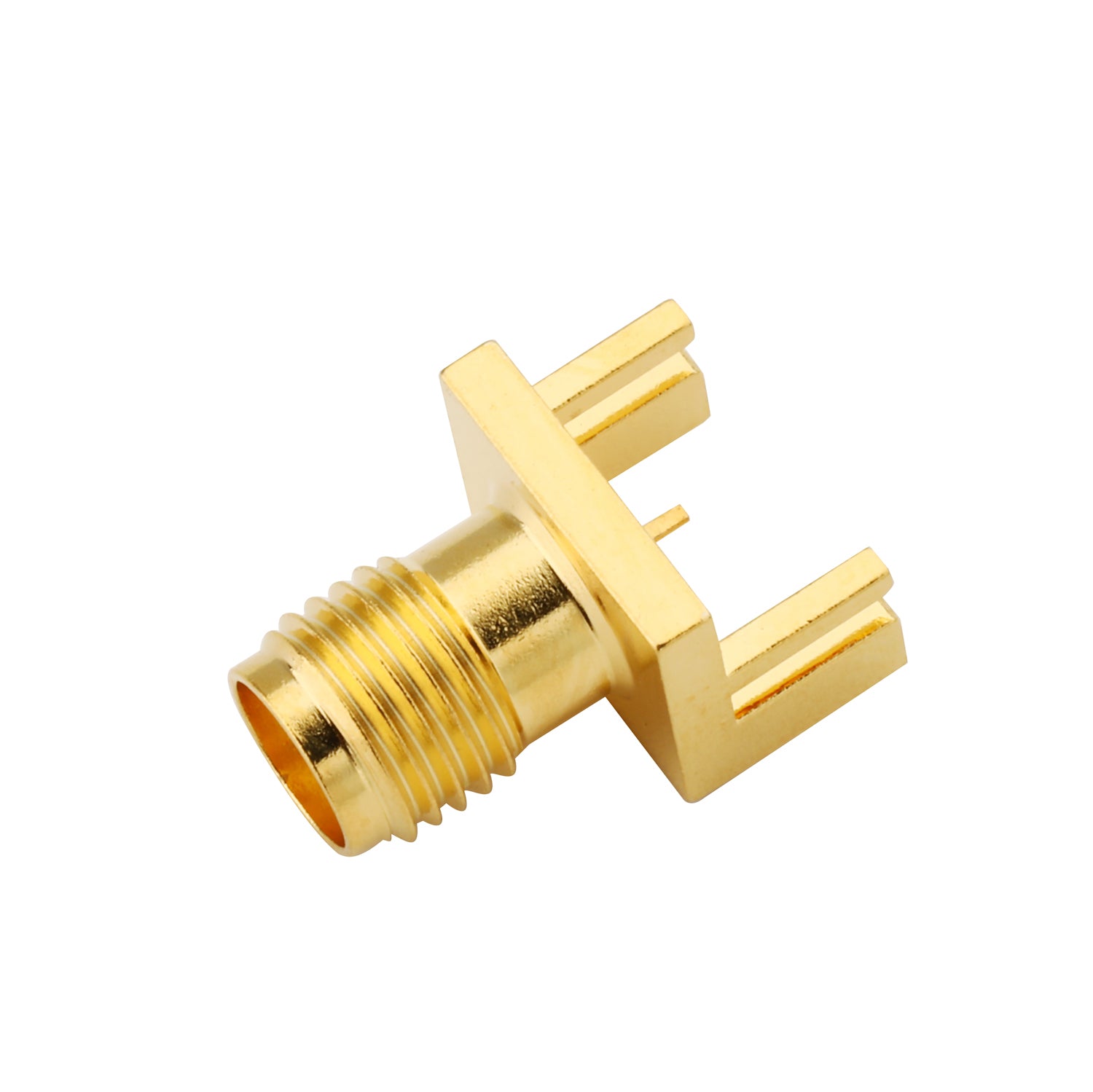

SMA PCB Edge Mount Connector 701841
Part Number: 701841
Impedance: 50 Ohms
Frequency Range: 0-18G
Working Voltage: 335V at Sea Level
Dielectric Withstanding Voltage: 1000V min at sea level
Contact resistance: 3 milliohms
Mating Torque: 7-10 Inch Pounds
Material:
Body – 1U’ Gold plated Brass
Contact – 5U’Gold plated Beryllium Copper
Insulator – Teflon Meets or Exceeds the applicable paragraph of MIL-C-39012 Operating Temperature: -65°C (-85°F) to 150°C (302°F)
RoHS Compliant
